Cascade

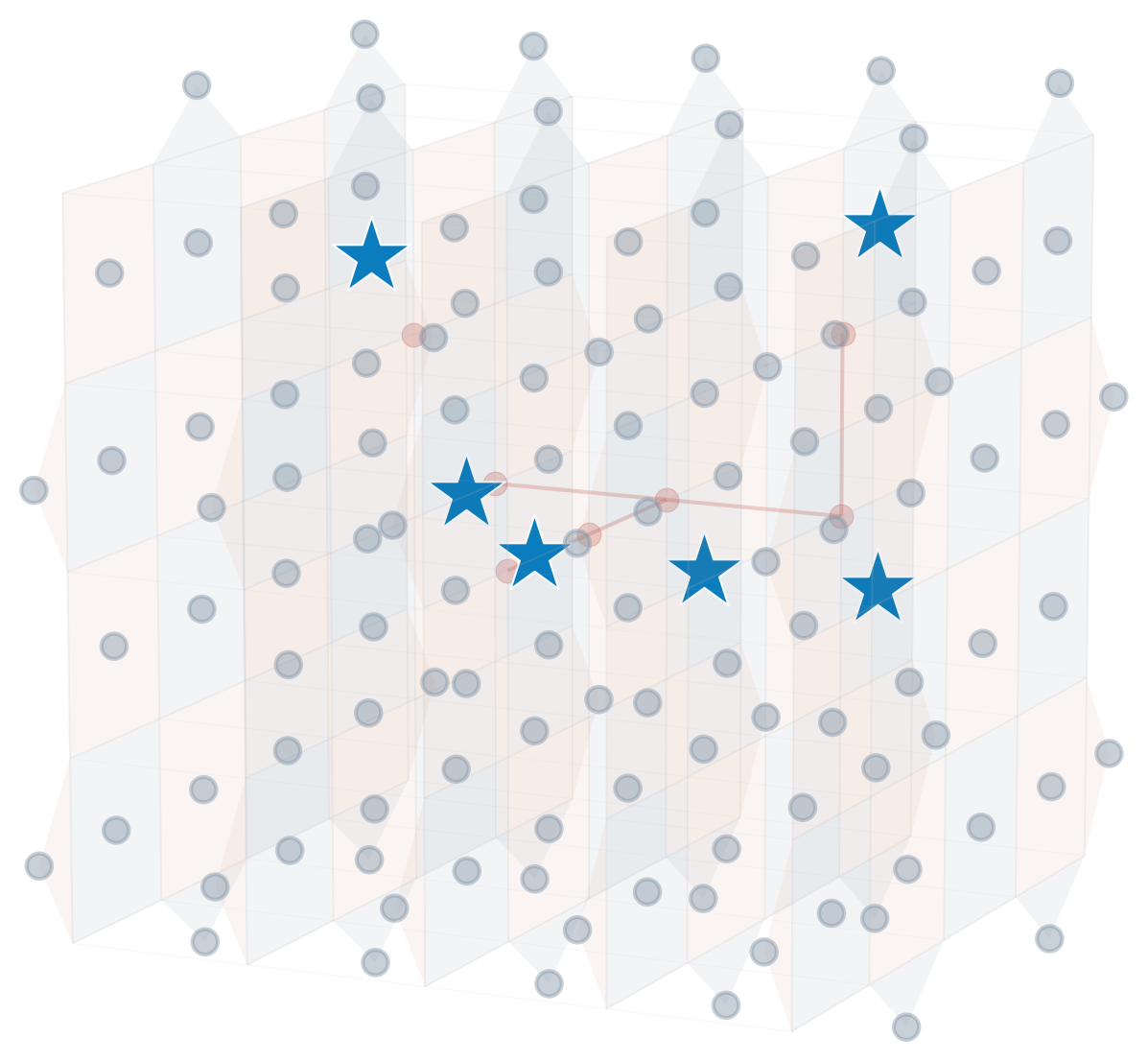

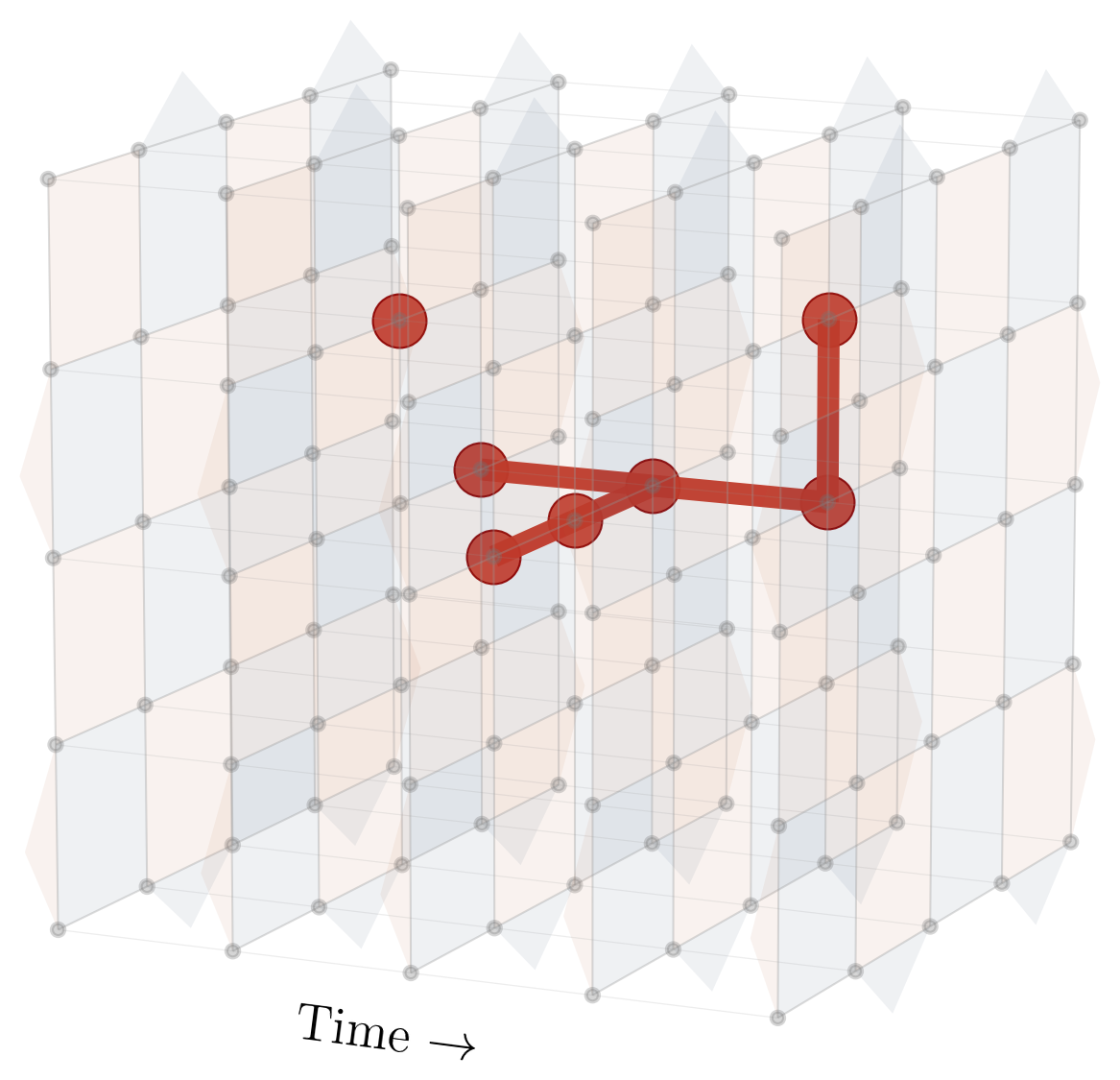

At operational error rates, errors are sparse — only a small fraction of qubits are affected. The syndrome provides a set of local parity checks on this sparse error vector: fewer bits than there are potential error locations, but enough to recover the error given the sparsity constraint — a structure analogous to compressed sensing, but over $\mathbb{F}_2$. Crucially, sparse errors produce localized clusters of syndrome violations, so the problem has natural spatial structure that a decoder can exploit.

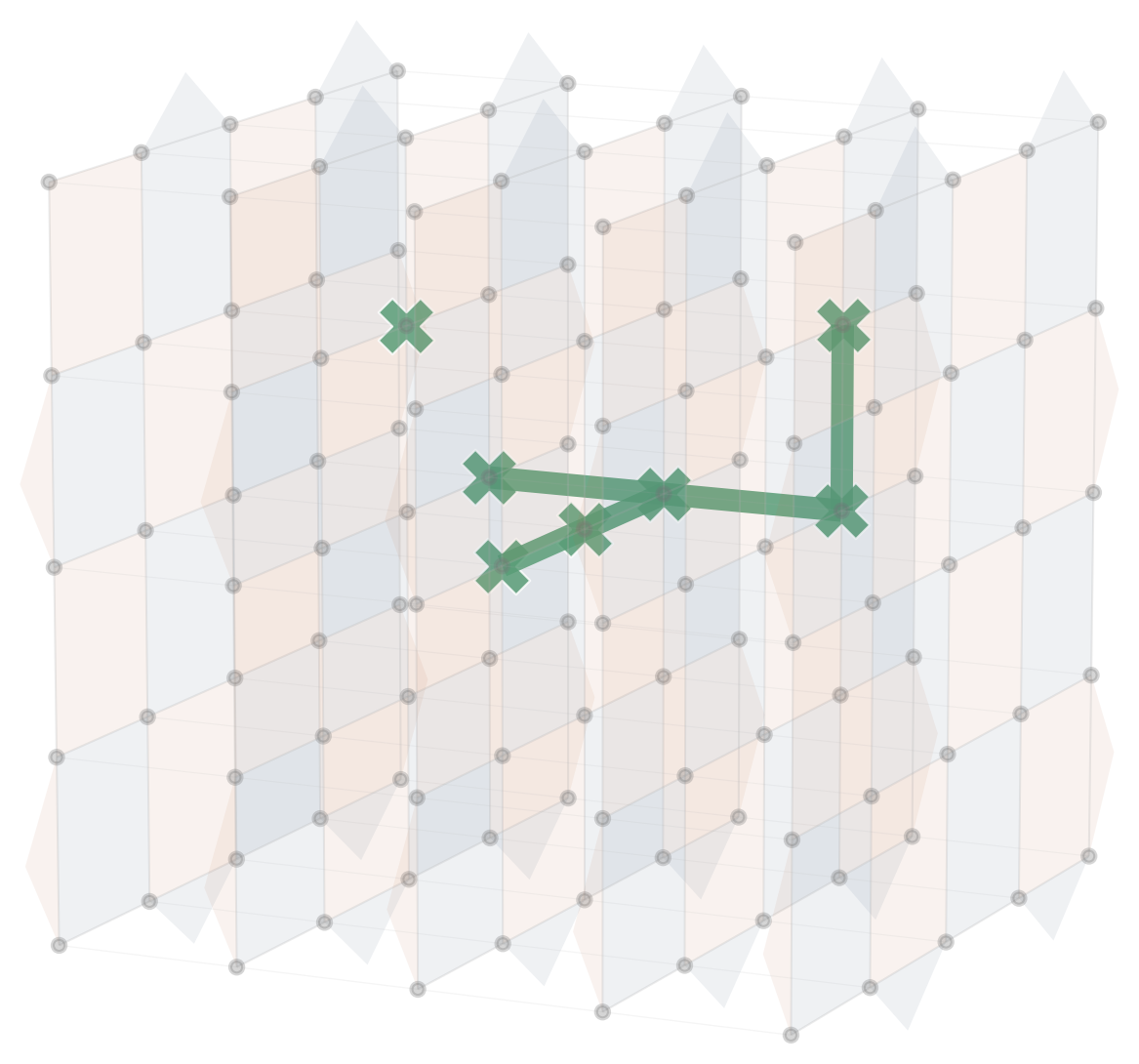

Cascade is a convolutional neural network decoder that exploits the spatial structure of the syndrome: each layer resolves nearby violations, and successive layers integrate over progressively larger regions until the global logical class can be determined. The architecture is designed around two principles: structure — the convolutions encode the geometric regularity of the code — and scale — sufficient model capacity enables generalization from high-noise training to the low-noise regime fault tolerance demands.

Scaling neural decoders to the large codes and low error rates needed for fault tolerance raises two challenges. First, extreme class imbalance: at operational error rates, logical failures occur with probability 10^-12 to 10^-6, so naive training requires exponentially many samples to encounter enough failures for useful gradient signal. Second, real-time inference: each syndrome must be decoded before the next one arrives — on the order of 1 µs for superconducting qubits, ~1 ms for trapped ions and neutral atoms — favoring local, parallelizable operations.

The key design choices are which inductive biases to build in, and how large the model needs to be. The convolutional structure exploits three geometric regularities of QEC codes, and the model's capacity determines how much of the code's error-correcting power it can actually access.

Cascade probes an under-explored regime in which quantum error-correcting codes suppress errors far more aggressively than standard distance scaling predicts. The standard model predicts that logical error rates scale as $P_L \sim p^{\lfloor(d+1)/2\rfloor}$, determined by the code distance $d$ — this implicitly assumes that minimum-weight uncorrectable errors dominate. In practice, these minimum-weight failure modes are extremely rare; the logical error rate is actually dominated by far more numerous higher-weight failure modes.

The result is two distinct regimes. At moderate physical error rates below the code's critical threshold (the rate below which error correction starts working), the abundant high-weight failure modes drive a steep waterfall in error rate ($\sim p^{10.8}$ for the $\llbracket 144, 12, 12 \rrbracket$ code). Only at very low noise do the rare minimum-weight modes take over, producing a shallower distance-limited floor ($\sim p^{6.4} \approx p^{\lfloor(d+1)/2\rfloor}$). This two-regime structure is well known for classical LDPC codes and has been noted in the quantum coding theory literature, but was not widely appreciated or clearly characterized in practice — because existing decoders are not accurate enough to resolve it cleanly.

Cascade exposes the waterfall by correctly handling the complex high-weight error patterns that simpler decoders systematically fail on. BP+OSD (belief propagation with ordered statistics decoding, the standard algorithmic decoder) misses the waterfall entirely ($\sim p^{5.4}$), leaving logical error rates ${\sim}4000\times$ above Cascade at $p = 0.1\%$. There is no error floor: exponential error suppression persists down to $P_L \approx 2 \times 10^{-11}$.

The waterfall has direct implications for how many physical qubits fault-tolerant quantum computation actually requires. Standard resource estimates model logical error rates using the distance-limited formula $P_L \sim \Lambda^{-\lfloor(d+1)/2\rfloor}$ with $\Lambda \approx 10$, calibrated to MWPM (minimum-weight perfect matching, the dominant classical decoding algorithm). A decoder that achieves steeper-than-distance scaling reduces the code distance $d$ — and therefore the physical qubit count — needed for any given target error rate.

Complementing the waterfall's reduction of space overhead, Cascade's well-calibrated confidence estimates reduce time overhead. Many fault-tolerant protocols require operations that must be retried until they succeed; discarding low-confidence predictions achieves a ${\sim}20\times$ higher acceptance rate than cluster-based post-selection at matched error rates — directly reducing the number of retries required.

How well a decoder exploits a code's error-correcting capability depends strongly on its capacity. We trained surface code decoders of varying width $H$ (with fixed depth $L=8$) at a single noise level, then evaluated across a range of physical error rates extending well below the training distribution. All models see the same data — the differences reflect only their capacity to learn generalizable representations.

Small models ($H \lesssim 64$) achieve reasonable performance near the training noise rate but fail to extrapolate, exhibiting error suppression worse than even uncorrelated MWPM. Large models ($H \geq 64$) recover the correct error-suppression exponents across the entire range — approaching the performance of Tesseract. Insufficient capacity is a key reason existing decoders fail to access the waterfall regime: as a model's expressive capacity grows, it gains the ability to recognize and correctly classify increasingly complex error patterns that simpler decoders systematically mishandle.

Architecture

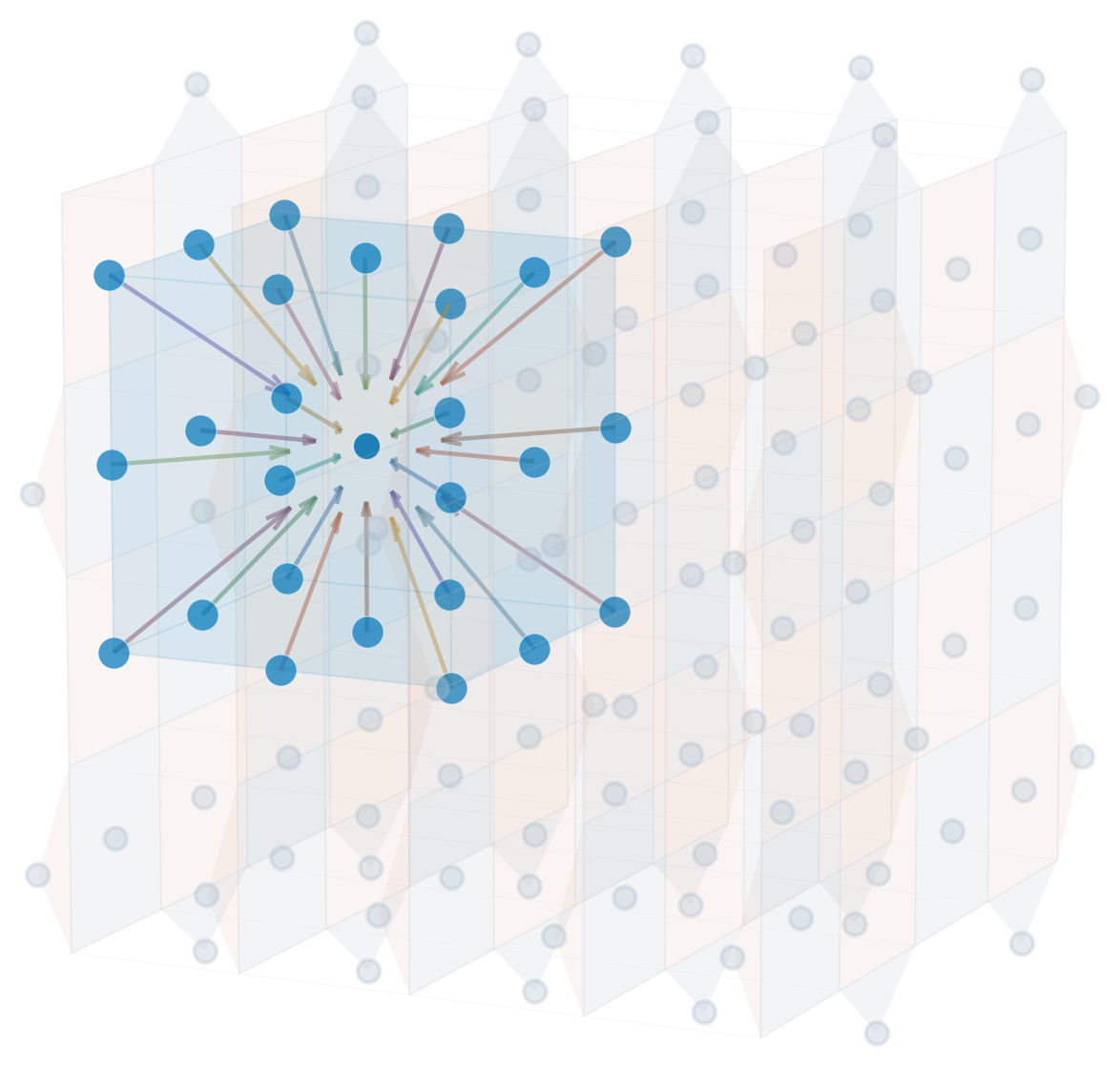

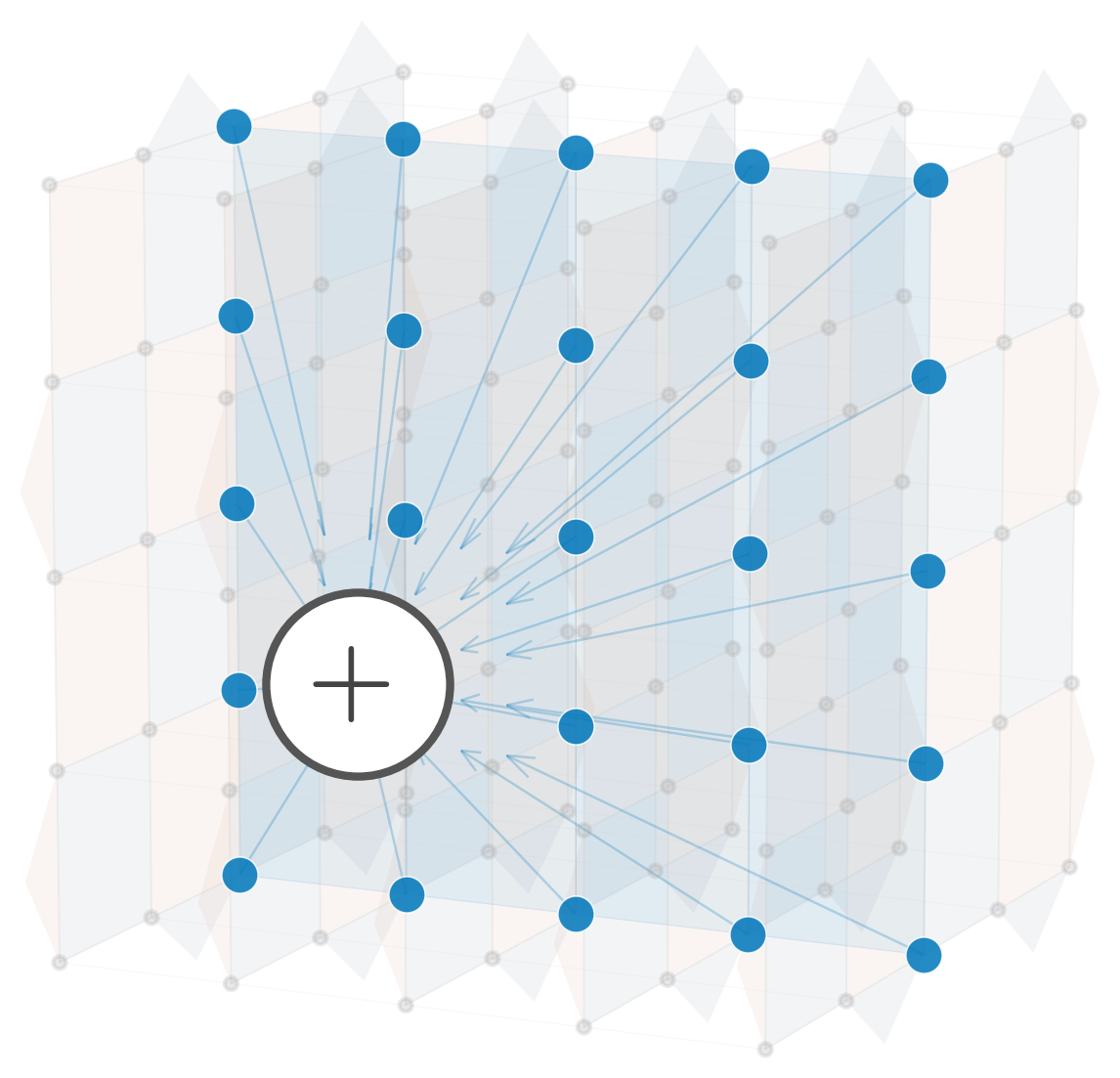

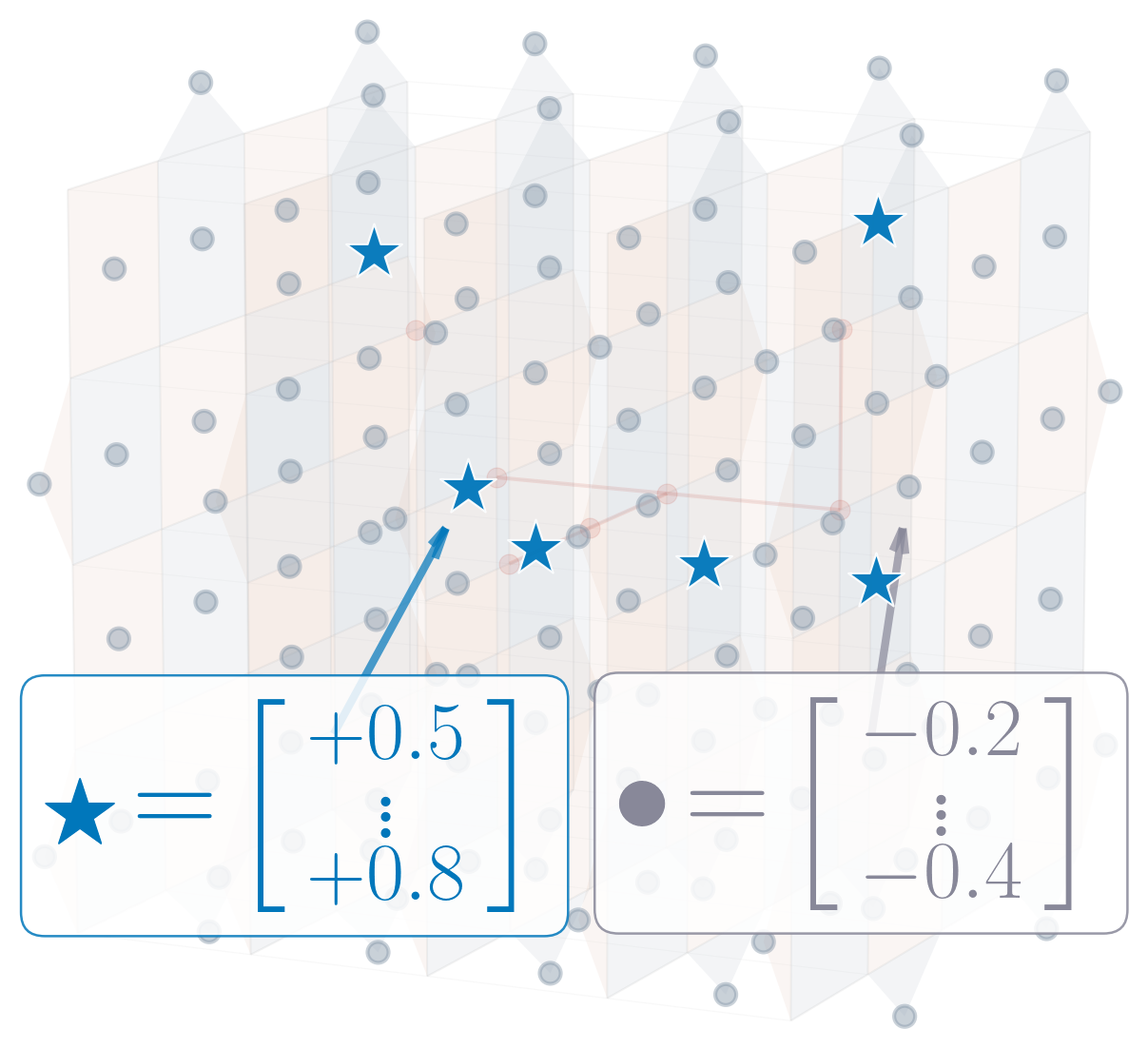

Cascade follows an encoder–backbone–readout design. A lightweight embedding projects the syndrome into a hidden dimension $H$, followed by $L$ pre-activation bottleneck blocks with local convolutions and residual connections. A final convolution scatters representations to data qubits, global average pooling aggregates over each logical operator's support, and a small MLP head outputs logits for logical observables. We use 3D convolutions for surface codes (2D space + time) and torus-equivariant convolutions for BB codes.

We train across scales using MuP to preserve training dynamics while increasing width, and scale residual connections by $1/\sqrt{2L}$ for stability.

Custom Triton Kernels for Torus Convolutions

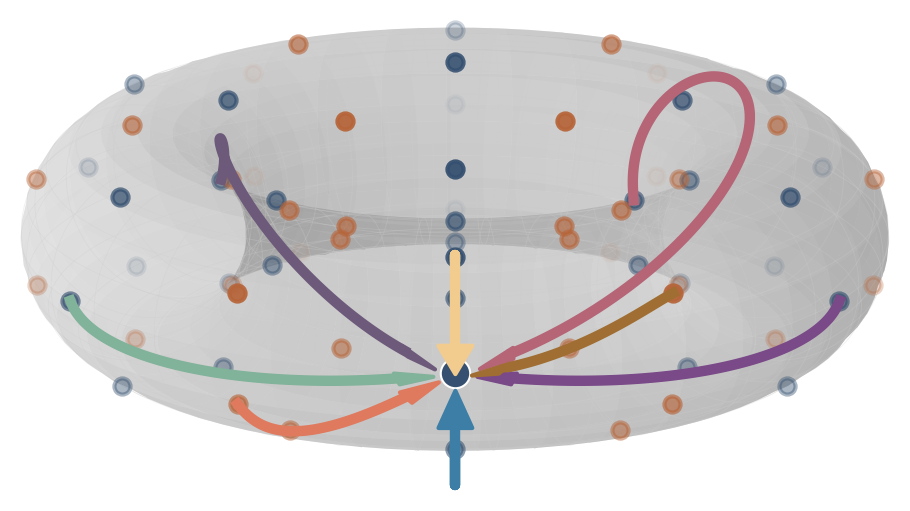

Standard deep learning frameworks provide convolutions for regular grids — 1D sequences, 2D images, 3D volumes. BB codes live on a torus: the stabilizer connectivity wraps around both cycles with modular arithmetic, and each stabilizer's neighbors include a mix of same-type and cross-type stabilizers at code-specific offsets. No built-in operation handles this.

Each output position $(b, t, p, i, j)$ — batch, time, plane (X or Z), and grid coordinates on the $\ell \times m$ torus — is computed as:

$$y_p[t, i, j] = \sum_{\Delta t}\; \sum_{(p', \Delta i, \Delta j) \in \mathcal{N}_p} x_{p'}[t{+}\Delta t,\; (i{+}\Delta i) \bmod \ell,\; (j{+}\Delta j) \bmod m] \;\cdot\; W_p^{(\Delta t, p', \Delta i, \Delta j)}$$

The neighbor set $\mathcal{N}_p$ includes both same-plane deltas ($p' = p$) and cross-plane deltas ($p' \neq p$), at code-specific offsets that wrap toroidally. In PyTorch, a naive implementation gathers neighbors with torch.roll, concatenates them, and runs a matrix multiply:

# x: (batch, time, 2, l, m, channels)
# deltas: list of (plane, delta_i, delta_j) offsets
# W: (channels * len(deltas) * time_kernel, out_channels)

# 1. Gather time neighbors
x = stack([x[:, t:t+t_out] for t in range(time_kernel)], dim=-1).flatten(-2)

# 2. Gather spatial neighbors on the torus (per plane)
gathered = cat([
    roll(x[:, :, plane], shifts=(di, dj), dims=(3, 4))
    for plane, di, dj in deltas
], dim=-1)

# 3. Linear projection
y = gathered @ W

This is an explicit im2col: steps 1–2 gather all neighbor features into a single matrix of shape (batch*t_out*2*l*m, channels*num_deltas*time_kernel), and step 3 is a standard GEMM. The gathered matrix is large and transient — it exists only to be multiplied and discarded.

Our Triton kernel performs an implicit im2col instead: rather than materializing the full gathered matrix, each thread block loads neighbor values on-the-fly inside the matmul loop, accumulating partial products directly into the output. This avoids the intermediate allocation and fuses the entire operation into a single kernel launch.

Kernel factorization. Each check has 22 spatial neighbors in the check-to-check graph across 3 temporal offsets, giving 66 distinct relations per layer. But the check-to-check connectivity is the square of the Tanner graph — two checks are neighbors precisely when they share a data qubit. This means the kernel factors into two bipartite steps: check→data followed by data→check, each with only 6 spatial neighbors across 2 temporal offsets (12 relations) — an over 5× reduction in kernel size. This mirrors one round of belief propagation on the Tanner graph, but with learned weights instead of the BP update rules. Stacking two smaller layers reproduces the same receptive field with fewer parameters and FLOPs per layer — analogous to how two stacked 3×3 convolutions replace a 5×5 in conventional architectures (same receptive field, but $2 \times 3^2 = 18$ parameters per channel instead of $5^2 = 25$).

We compare three architectures at identical model size ($L=8$, $H=256$) on distance-15 surface codes, plotting logical error rate as a function of training compute (PFLOPs) for a fair comparison across architectures with different per-step costs. Convolution achieves the lowest final error rate, reaching parity with Tesseract. Full attention performs worst: it not only saturates at a higher error rate than local attention, but its entire learning curve is shifted rightward, requiring more total compute to reach any given accuracy. Adding flexibility by moving from local to global attention actually degrades performance — the additional degrees of freedom dilute rather than enhance the structural prior.
